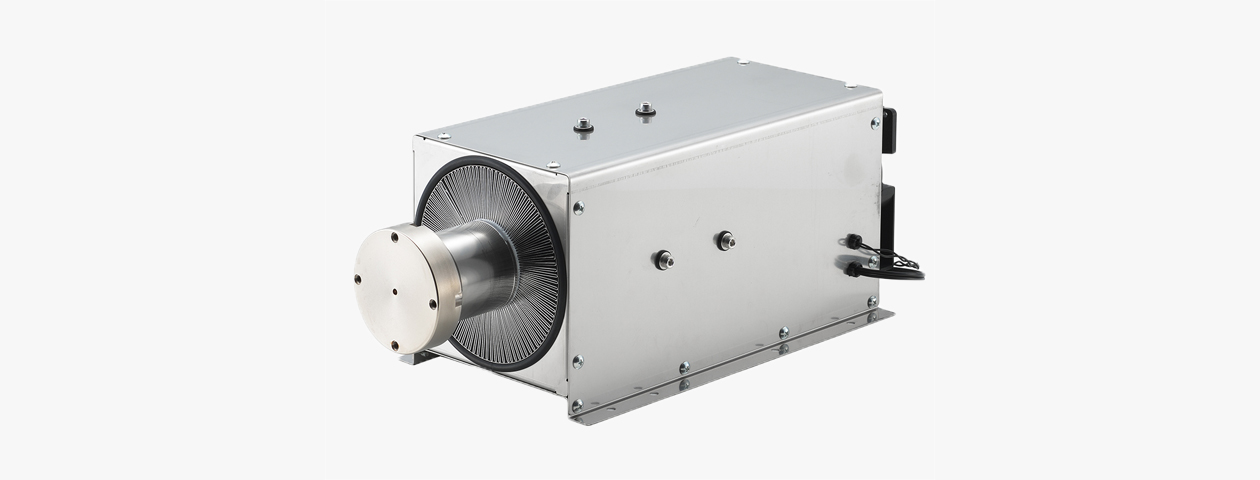

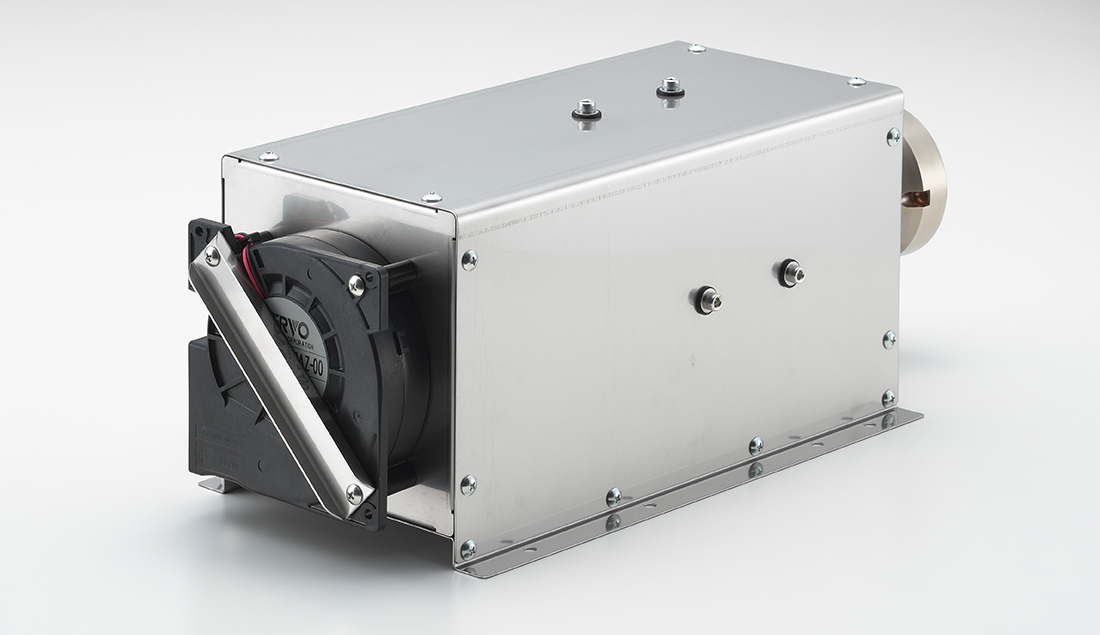

SC-UE15R FPSC Module UE15 with Thermal Conductor

High Power Cooler Mount part for cooling head is installed

Key FeaturesKey Features

  • The SC-UE15R is high power cooler, suitable for strict temperature control below than -80℃. Depending on the heat mass and temperature of object, cooling capacity and speed can be fine-tuned.

    *This machine has no heating function. Heating is required separately for heating.

  • Mounting parts for the cooling head is installed as standard for SC-UE15R.

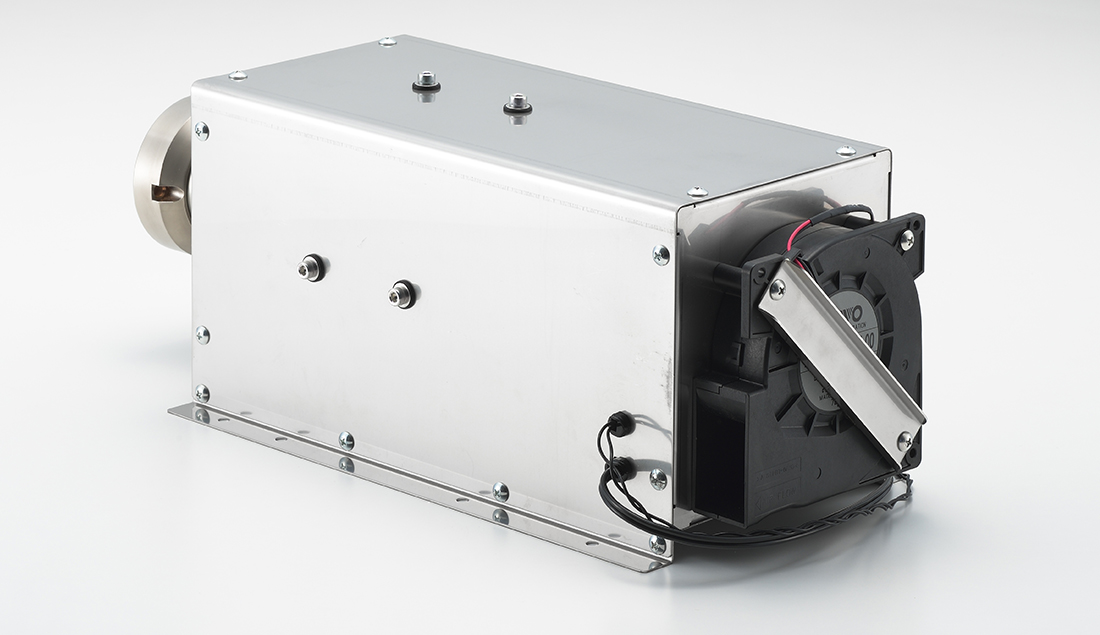

  • The fan is optimally integrated with cooler body, that becomes a heat source. You can flexibly design heat management of your system with separately prepared Driver PCB that becomes another heat source.


Typical performance

This cooling curve is the typical characteristic at no load, not guaranteed value. Note that cooling performance depends on each design of cooling system strongly. Referring user’s manual at our web-site, and confirm if our products are suitable for your use.

Typical performance

Your Industries

  • Inspection/Analysis

    FPSC are used for inspection and analysis for chemical materials and petroleum in cryogenic environment.

  • Reaction

    FPSC are used for low temperature reaction test of chemical materials in low temperature environment, where precise temperature control is required.


– State of the Art

FPSC, Free Piston Stirling Coolers, are the complete CFC free system, using natural He gas.
It is small, portable, and it is widely used for precise temperature control for under -50℃.
Twinbird succeeded in mass production through the collaborative network of craftsmanship in Tsubame-Sanjo.

  • suitable for cooling below -50℃. *1

    *1 Optimum thermal insulation design for relatively small thermal mass is required.

  • Reach to -80 ℃ in a few minutes. *1

    *1 Optimum thermal insulation design for relatively small thermal mass is required.

  • Precise temperature control system. *1

    *1 Optimum thermal insulation design for relatively small thermal mass is required.

  • Total volume of FPSC is less than 3 liters. *2

    *2: In case of model SC-TG08S

  • Zero Global Warming Potential He gas is used for refrigerants to reduce environmental load.

  • FPSC based on the network of craftsmanship in Tsubame-Sanjo


Dimensions W H L: 180 x 160 x 435 (mm)
Weight 9 kg
Power Source Voltage DC 48 Volts
Maximum Current 9 Amp
Cooling Capacity 42.5 Watts at -80℃ at cooling head (ambient temp: 25℃)
Ambient Temp in Operation 0℃~40℃
Set Temp of Cooling head -20℃ or less
Noise 55 dB(A) (Horizontally 1 m from Cooler, after stable operation)

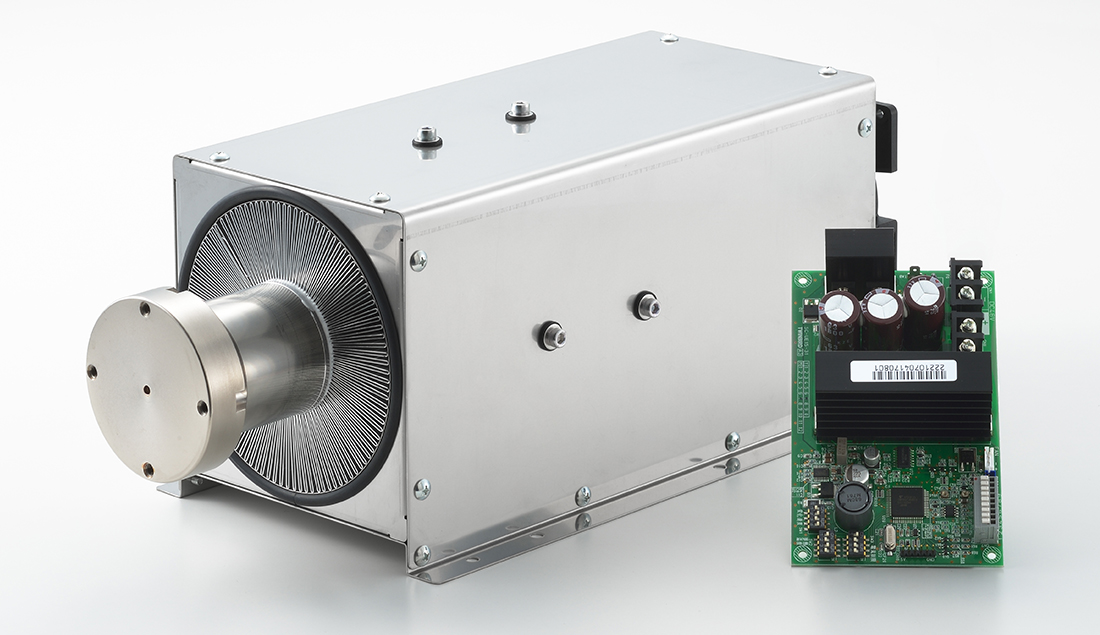

Include Driver PCB
Sample Price Please contact SC business division for detail.


Confirm if the product is suitable for your use before place order.
