SC-UG08S / FPSC Module UG08S

Standard cooler, Compact and lightweight integrated module

※SC-UD08 is discontinued.

Key Features

  • The SC-UG08S is a standard cooler, which is suitable for strict temperature control below – 80 ° C. Depending on the heat mass and temperature of object, cooling capacity and speed can be fine-tuned.

  • SC-UG08S can be installed on various applications, especially for portable type equipment because of its compactness and lightweight.

  • All of the cooler, Drive PCB and fan is integrated one unit. You can install SC-UG08S into your equipment as it is.

  • “Vibration detector” on SC-UG08S automatically reduces the output instruction to suppress the abnormal vibration.


Typical performance

This cooling curve is the typical characteristic at no load, not guaranteed value. Note that cooling performance depends on each design of cooling system strongly. Referring user’s manual at our web-site, and confirm if our products are suitable for your use.

New Function “Original Vibration suppression Technology”

1.Abnormal vibration Abnormal vibration with noise occurs in “(1) when cooling a large thermal load” or “(2) when a large thermal fluctuation occurs in the object to be cooled”.

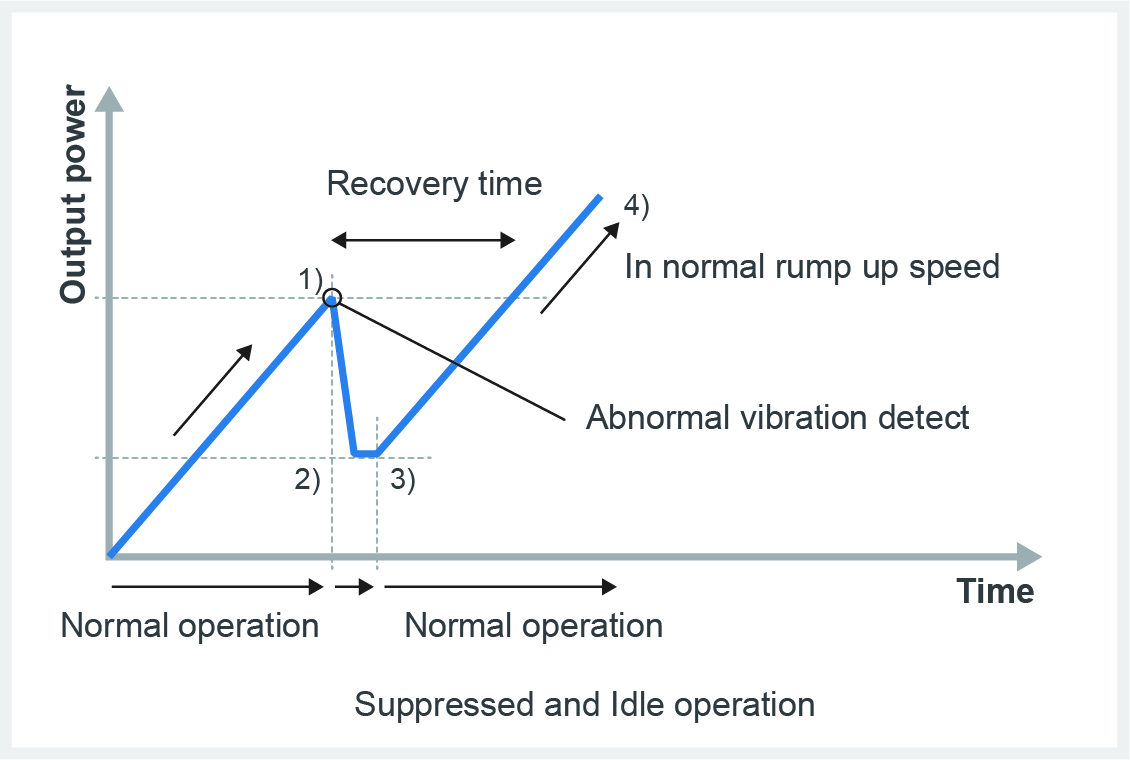

2.”Vibration detector” protection DRIVE PCB suppresses and is idle FPSC operation forcibly when abnormal vibration is detected. After abnormal vibration with noise stops, DRIVE PCB starts to drive FPSC again.

Ask Question, Abnormal Vibration

※We also have products without a vibration detector. Please contact the SC Division for details.

Your Industries

  • React

    Low temperature synthetic reaction tests in the field of pharmaceutical intermediates and fine chemical fields are effective in suppressing the formation of byproducts.

  • Freeze Drying

    FPSC is used for tests for highly controlled freeze-drying process of medical materials.

  • Accurate ultra-low temperature

    FPSC accurate ultra-low temperature supports professional applications such as temperature calibration and inspection of electronic components .

  • Cryopreservation

    FPSC is used for advanced cryopreservation for cells and biological samples. Precise temperature and high cooling speed are required for optimum temperature profile in freezing process.

FPSC

– State of the Art

FPSC, Free Piston Stirling Coolers, are the complete CFC free system, using natural He gas.
It is small, portable, and it is widely used for precise temperature control for under -50℃.
Twinbird succeeded in mass production through the collaborative network of craftsmanship in Tsubame-Sanjo.

  • suitable for cooling below -50℃. *1

    *1 Optimum thermal insulation design for relatively small thermal mass is required.

  • Reach to -80 ℃ in a few minutes. *1

    *1 Optimum thermal insulation design for relatively small thermal mass is required.

  • Precise temperature control system. *1

    *1 Optimum thermal insulation design for relatively small thermal mass is required.

  • Total volume of FPSC is less than 3 liters. *2

    *2: In case of model SC-TG08S

  • Zero Global Warming Potential He gas is used for refrigerants to reduce environmental load.

  • FPSC based on the network of craftsmanship in Tsubame-Sanjo

Specifications

Dimensions W D H: 175 x 190 x 290 (mm)
Weight 3.6 kg
Power Source Voltage DC 24 Volts
Maximum Current 10 Amp
Cooling Capacity 25 Watts at -80℃ at cooling head (ambient temp: 25℃)
Ambient Temp in Operation 0℃~35℃
Set Temp of Cooling head -20℃ or less
Noise 50 dB(A) (Horizontally 1 m from Cooler, after stable operation)
Include Drive PCB
Accessory SC-CA04 Cold Side Adapter
Sample Price 1,400 USD (ex. Work, Shipping fee is not included)
※This price is a reference price.
Formal quote will be provided at the time of purchase.
This price will be change without notice.

Documents

Confirm if the product is suitable for your use before place order.
