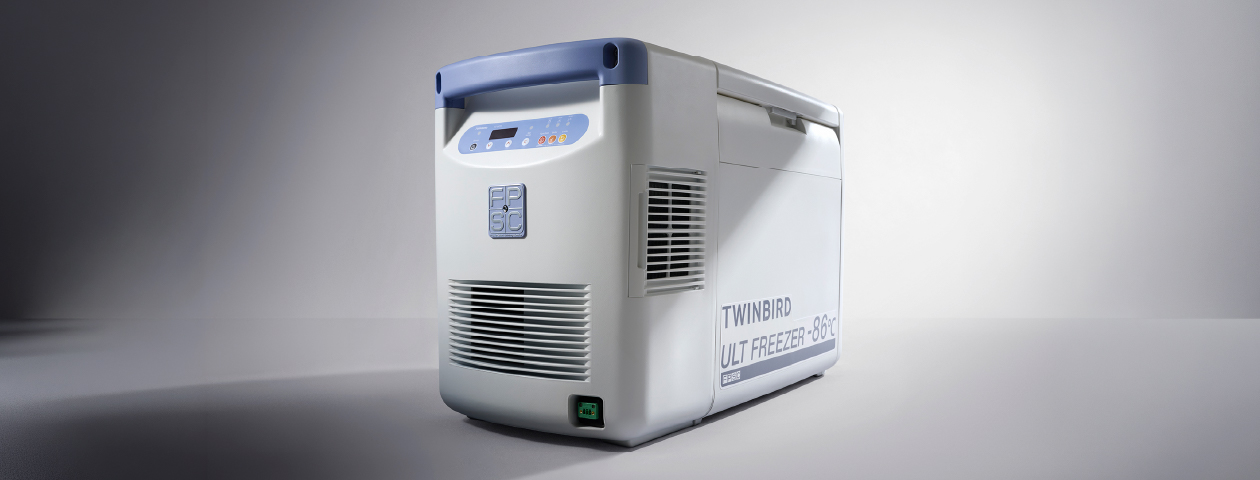

SC-UF25 Portable Ultra-Low Temperature Freezer 25L
Key Features
-
Precise temperature control in 1°C increments provides customized storage conditions for highly temperature-sensitive specimens used in regenerative medicine, cell therapy, and drug discovery research.
-
Enables distributed installation in environments where large freezers are difficult to accommodate, while also allowing easy transport between work areas. In addition to multi-voltage compatibility (AC100-240V), it incorporates practical laboratory features, including a locking mechanism and an access port.
-
Equipped with a Free Piston Stirling Cooler utilizing helium gas as a refrigerant. Reduces environmental impact while supporting reliable long-term operation in research and medical institutions through an integrated design and manufacturing process in Japan.
Photos
| Product Name | Portable Ultra-Low Temperature Freezer |
|---|---|
| Model | SC-UF25 |
| Cooling System | Free-Piston Stirling Cooler (FPSC) |
| Temp. Range | -86°C to -20°C (at ambient temp. up to 32°C) |
| Ambient Temp. | +5°C to +40°C |
| Ext. Dimensions | 695 × 350 × 460 mm |
| Int. Dimensions | 335 × 225 × 340 mm (incl. Inner-lid) |
| Capacity | 25 L * Including Inner-lid (Holds 10 × 2" boxes, or 8 × 3" boxes [6 with rack]) |
| Weight | Approx. 25 kg |
| Inner-Lid | Expanded PS / PE |
| Insulation | Vacuum Insulation Panels (VIP) & PU Foam |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption (Provisional) | Max. 280 W (Steady state: 150 W) |
| Access Port | 1 port on rear（Φ6.5mm） |
| Security Lock | Key lock mechanism |
| High-Temp. Alarm | Yes |
| Low-Temp. Alarm | Yes |
| Remote Alarm Contact | Yes |
| Control Panel Lock | Yes |
| Included | Protective mat, Inner-lid, User manual, Silicone Stopper, Key (2 pcs) |
Disclaimer: The SC-UF25 is for research, laboratory and life-science cold-chain use only. It is not registered under the EU Medical Device Regulation and is not intended for diagnosis, treatment, clinical decisions, or patient care.
