SC-DF25WL DEEP FREEZER 25L
“COVID-19 vaccine storage / transportation adoption model”

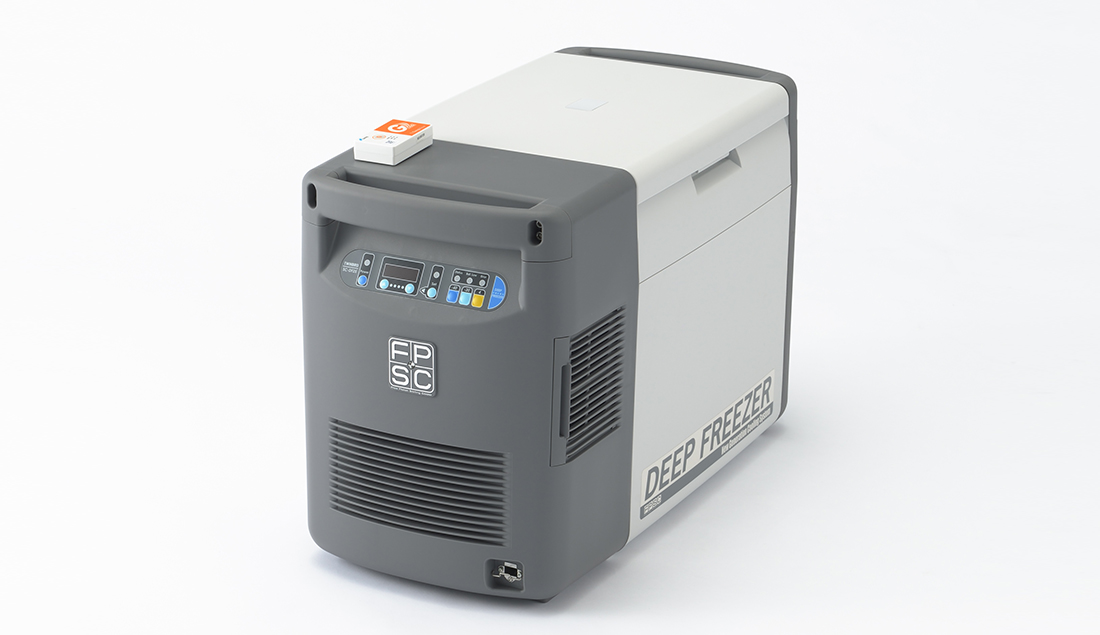

SC-DF25WL
DEEP FREEZER 25L
・Click herefor more details.
Guidance
SC-DF25WL is a product in which a temperature logger “GT002-T-DF” that logs the temperature inside the freezer is attached to a portable freezer “DEEP FREEZER” that can cool at low temperature. Check the following guidance before using DEEP FREEZER.
These are the support sites for the temperature logger GT002-T-DF. Check the following guidance before using temperature logger GT002-T-DF.
Key Features
-
TempView is a reliable and easy-to-use new temperature logger suitable for applications that require temperature control in logistics management, such as “GDP” in the medical / pharmaceutical industry and “HACCP” in the food industry.
From various settings to automatic report creation, all operations can be performed only on mobile terminals such as smartphones. -
Our high performance Stirling Cooler and vacuum insulation technology realized -40℃ at lowest with 1℃ increments of setting point.
-
SC-DF25WL is used in the field of cold chain delivery where strict temperature control is required. It can be powered from wall or car outlet ( AC 100V / DC 12V ).
-
Our high performance Stirling Cooler and vacuum insulation technology realized -40℃ at lowest with 1℃ increments of setting point.
Typical performance
This cooling curve is the typical characteristic of internal temperature at empty cabinet, not guaranteed value. Note that cooling performance depends on heat mass and arrangement of contents strongly.
Specifications
| Dimensions (outside) | W D H: 695 x 350 x 460 (mm) |
|---|---|
| Dimensions (inside) | W D H: 335 x 225 x 340 (mm) , 25 liters (Including Inner Lid) |
| Weight | 16.5 kg |
| Power Source |
For Japanese domestic AC100V power supply (using the included SC-AD70 AC adapter) AC 100V-240V 50-60Hz Power consumption 55W 0.55A (at AC 100V) For 12V car cigarette socket (using the included DC power cord) DC12V Power consumption 48W (4A) |
| Setting Temperature | 1 ℃ increments, +10℃～ - 40℃ (ambient temp: 25℃) (Note that it is does not operate properly when the ambient temperature is lower than set temp.) |
| Noise | 55 dB(A) (Horizontally 1 m from Cooler, after stable operation) |
| Include | SC-AD70 AC Adapter DC Power Cord (3m, DC12V) Temperature Logger Mattress Inner Lid |
